P200 SERIES
Electric contact pressure gauge
Electrical contact type pressure gauge make or break an electric control circuit with regard to the position of pointer. The gauges feature a hub in the window for an adjustment key. Contact actuation is made when there is an upper or lower deviation of the set desired value by the pointer.
Connection types:

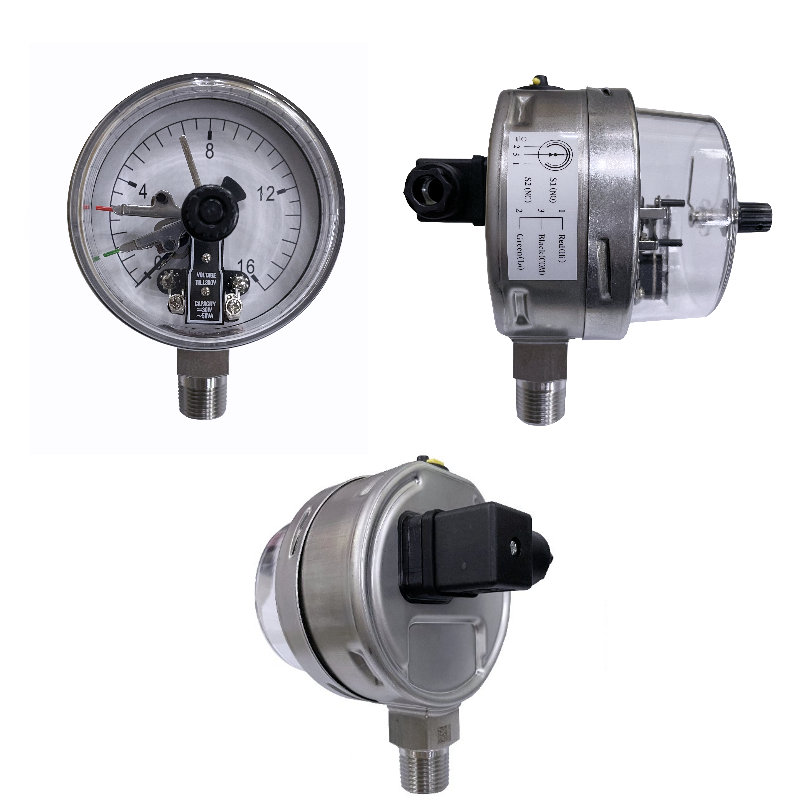

SS-A type (bottom mount)
SS-B type (bottom mount with back flange)

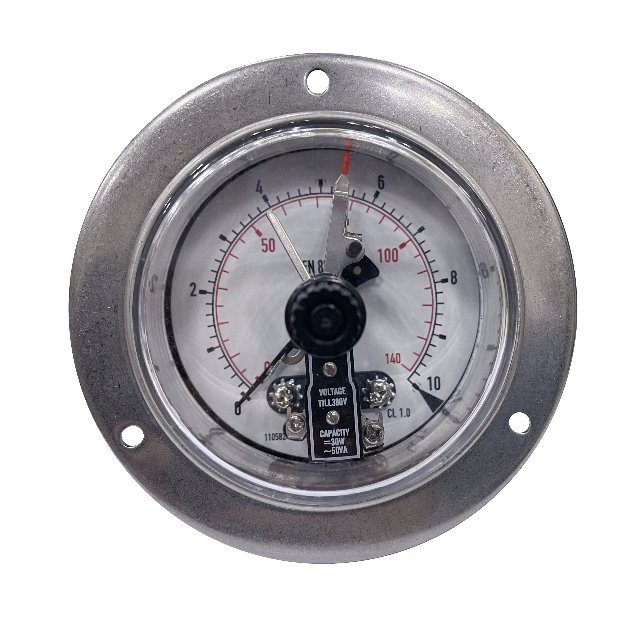

SS-DU type (lower back mount with front flange)
Application:
metallurgy, power station, petroleum, chemical industries, measure pressure various fluid mediums without explosion risk in mechanical and electrical equipment
Connection types:
SS-A type (bottom mount)
SS-B type (bottom mount with back flange)
SS-DU type (lower back mount with front flange)
Application:
metallurgy, power station, petroleum, chemical industries, measure pressure various fluid mediums without explosion risk in mechanical and electrical equipment
Specification
- Size: 4”(100mm)
- Wire type: wiring cable, terminal block, junction box
- Dial: white aluminum with markings and graduations
- Window: polycarbonate
- Pointer: black finished aluminum
- Ring: 304 stainless steel
- Case: 304 stainless steel
- Movement: 304 stainless steel
- Socket: 316 stainless steel
- Bourdon Tube: 316L tube
- Connection: 3/8", 1/2" PT, NPT, BSP thread
- Mounting: bottom or lower back mount, optional flange
- Filling: optional glycerin filled type
- Accuracy: +/-1.5% of full scale
- Operating Temperature Limit: -20 ~ 200°C ( -4 ~ 400°F )
- Humidity: below 85%
- Voltage: -220V~380V, 30VA
- Dielectric strength: 2000V, 50Hz (for circuit inside)
- Contacts: Single, double
Trade Information
- Country of Origin : Taiwan
- Main Export Markets : North America, Europe, Southeast Asia
- Payment Details :
- Payment Terms : T/T, Paypal
- Delivery Details :
- Lead Time : 30 Days
- FOB Port : Keelung
